ekey dLine

Fingerprint scanner for door handle and door leaf

IP56 · FAR 1:10,000,000

With the ekey dLine, the front door becomes smart. The fingerprint scanner is installed by door manufacturers at the factory and transforms your entrance into a biometric access control system. Open your door safely and conveniently with your finger, manage users via the ekey bionyx app, and enjoy a new sense of convenience that fits seamlessly into modern smart homes.

Factory-integrated by leading door manufacturers
Setup in just a few steps via the ekey bionyx app
Local Mode works fully offline — no Internet required
Plus Mode adds remote opening, push notifications & time slots
Up to 20 users (expandable to 100) with up to 4 fingers each
Smart home connectivity via Alexa, HTTP(S), APPMODULE, REST API

Request a Quote Call +44 7852 102697

Why ekey dLine

The advantages at a glance

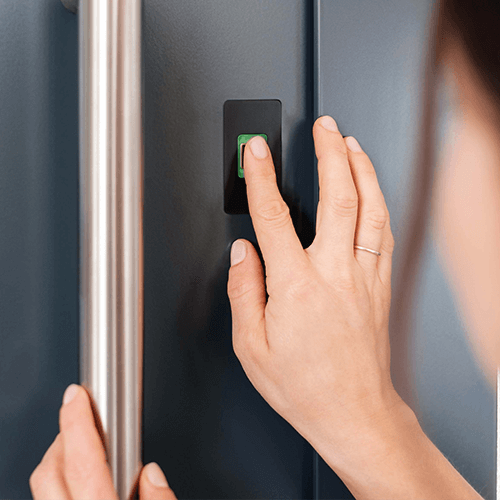

Your finger as a key

No key, smartphone, code or card. You can never lock yourself out.

Maximum security

False Acceptance Rate 1:10,000,000 — comparable to a 7-digit code.

Remote opening

Open the door from anywhere via the ekey bionyx app (Plus Mode).

Personalised time slots

Grant access on specific days and hours per user.

Push notifications

Get notified instantly when the door is opened.

Smart home ready

Integrates with Amazon Alexa, HTTP(S) requests, APPMODULE and REST API.

ekey bionyx App

Two operating modes

Local Mode

Without Internet / WLAN

Opening with fingerprint scanner or smartphone near the door
Intuitive administration via smartphone (users, devices)
Various functions assigned to different fingers (device-dependent)
Up to 20 users (up to 4 fingers per user)
Firmware updates

Plus Mode

With smart functions

All basic functions from Local Mode
Opening with fingerprint still works without Internet/WLAN
Remote opening via smartphone
Push notifications when the door is opened
Time slots (e.g. access Wednesday 09:00 – 13:00)
Manage up to 20 fingerprint scanners centrally in the app
Save fingers once and sync across devices
Remote administration of authorisations
30-day access log (activate/deactivate/delete)
Amazon Alexa connection
Smart home connectivity (HTTP(S), APPMODULE, REST API)
Data backup of device configuration
Remote support

Extension available (subject to charge): expandable up to 100 users.

Technical Details

ekey dLine specifications

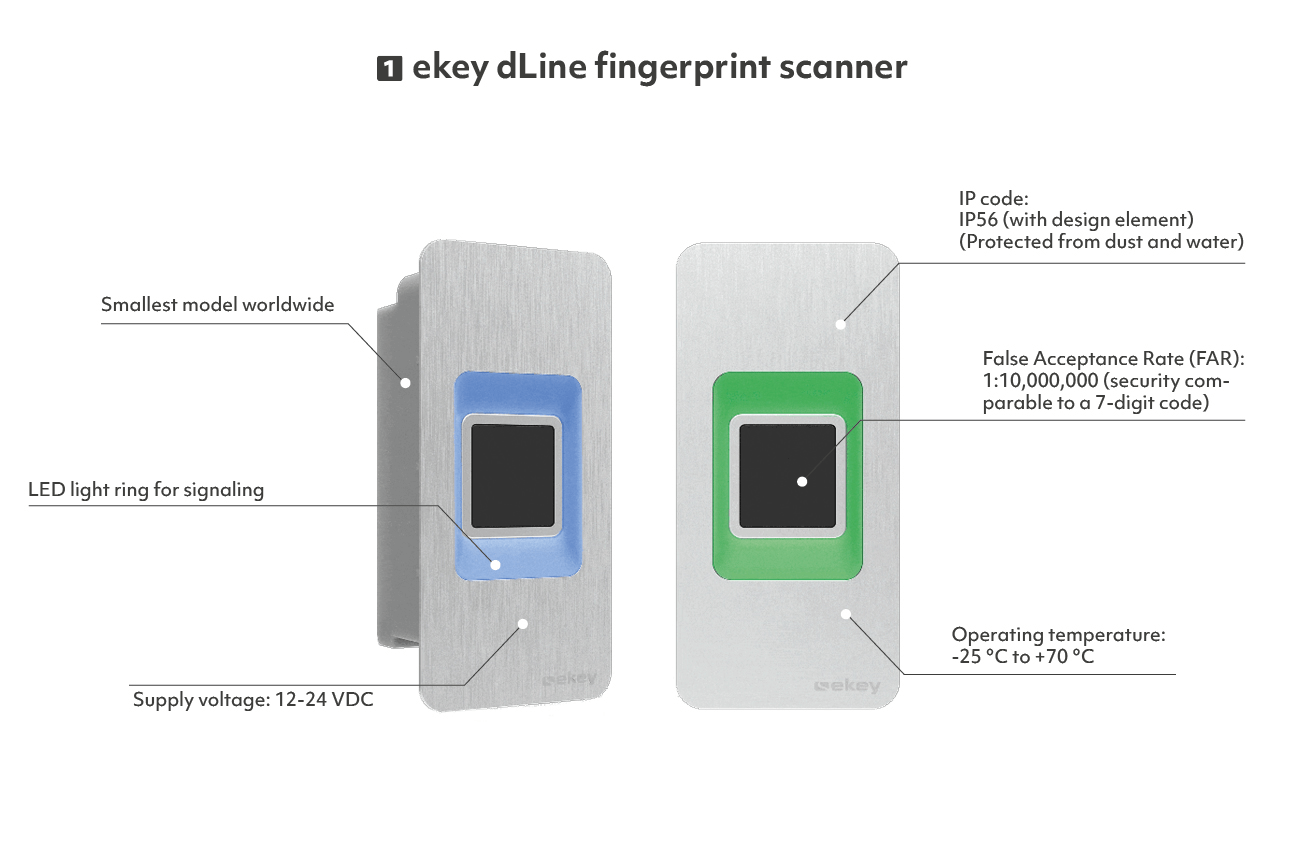

Form factor

Smallest fingerprint scanner of its kind worldwide. Designed for integration into the door handle or door leaf at the factory.

Security

False Acceptance Rate (FAR) 1:10,000,000 — comparable to a 7-digit code.

Protection class

IP56 with design element — protected from dust and water.

Power supply

12–24 VDC

Operating temperature

−25 °C to +70 °C

Signalling

LED light ring for clear visual status feedback.

Users

Up to 20 users by default (up to 4 fingers per user). Expandable to 100 users in Plus Mode.

Compatibility

Up to 5 fingerprint scanners per account (default), managed centrally via the ekey bionyx app on iOS and Android.
